As the core actuator of the hydraulic system, the hydraulic cylinder achieves linear or oscillating motion by converting hydraulic energy into mechanical energy. Among them, single-acting hydraulic cylinders occupy an important position in industrial machinery due to their simple structure, low cost, and suitability for unidirectional output scenarios.
I. Dump Truck Lifting System: A classic Application of gravity Reset
The lifting of dump truck cargo boxes is one of the most typical industrial scenarios for single-acting hydraulic cylinders. The cargo box is lifted by pushing the piston rod with hydraulic oil. After unloading, it is reset by the weight of the cargo box itself. Taking a 10-ton dump truck as an example, a single-acting hydraulic cylinder with a cylinder diameter of 100mm and a working pressure of 20MPa can generate a thrust of approximately 157kN. This system adopts a hinged earring installation method to meet the swinging requirements of the vehicle body. Moreover, the surface treatment of the hard chrome-plated piston rod enhances corrosion resistance, ensuring reliability in harsh outdoor environments.
Ii. Hydraulic Fixture System: Precise control of spring return
In the field of machine tool fixtures, single-acting hydraulic cylinders achieve rapid clamping and releasing through spring return. Taking the processing of metal workpieces as an example, a spring-return fixture with a cylinder diameter of 40mm and a stroke of 50mm can complete 20 clamping cycles per minute. Its core advantages lie in: built-in high fatigue life springs ensure long-term stability during use, wear-resistant polyurethane seals are suitable for high-frequency movements, rapid clamping is achieved through hydraulic drive, and spring return guarantees the immediality of the release action.
Iii. Lifting Platform System: Safety Design Driven by Gravity
In industrial lifting platforms, single-acting hydraulic cylinders achieve the descent of the platform through gravity reset. This system adopts a single-stage hydraulic cylinder structure. When the hydraulic oil enters the rodless cavity, it pushes the piston rod to rise. After the pressure is released, the platform descends relying on its own weight. By setting an exhaust plug above the cylinder block to expel accumulated air and combining it with a V-shaped sealing ring to prevent dust from entering, the smoothness of the movement is ensured. This type of design is widely used in the transportation of goods in two-story industrial plants, with a minimum height of 150-300mm, making it suitable for installation environments where pits cannot be dug.
Iv. Agricultural Machinery Tipping Mechanism: A Reliable Solution for Load Reset
The tipping mechanism of the tractor adopts a single-acting hydraulic cylinder to achieve the flipping of the cargo box. When the hydraulic oil enters the rodless cavity, the piston rod pushes the cargo box to flip to an Angle of more than 50 degrees. After unloading, the cargo box and the material return to their original position by their own weight. This system ensures the stability of movement by installing a guide sleeve between the plunger and the cylinder body, and uses a felt dust-proof ring to prevent impurities from entering, thus guaranteeing reliability in harsh field environments. This type of design is also applied to the control of harvester components to achieve the automatic tilting of crop collection boxes.
V. Hydraulic Pumping Unit Alignment System: A Technological Breakthrough in Wind Load Resistance
In oilfield hydraulic pumping units, the single-acting hydraulic cylinder precisely aligns the sucker rod through spring return. For the once-in-a-century strong wind condition, a centering cylinder with a diameter of 120mm and a stroke of 300mm was designed. By calculating the wind load and the deflection of the hydraulic cylinder’s bending deformation, three centering schemes were developed. This system adopts a flange connection structure to enhance its impact resistance, and is equipped with an internal buffer device to reduce mechanical collisions, ensuring that the verticality deviation of the sucker rod does not exceed 0.5° in strong wind conditions.
Vi. Telescopic Sleeve Lifting System: Multi-stage reset space optimization
The tipping bucket of the heavy-duty truck adopts a TG type single-acting telescopic sleeve hydraulic cylinder, which achieves large-stroke lifting through the series connection of multi-stage pistons. This system features pressure ratings of 16MPa/20MPa and a maximum stroke of 1250mm. It can be installed in various forms such as ball heads, earrings and ear shafts. When the hydraulic oil enters the rodless chambers of each level in sequence, the piston extends in the order from large to small and moves in the opposite direction when retracted, achieving a balance between compact structure and long stroke.
Vii. Swing Hydraulic Motor: Rotation execution for blade reset
In bionic hexapod robots, the UB type single-acting swing hydraulic cylinder achieves the reciprocating swing of the leg joints through blade reset. This system adopts a rack and pinion mechanism, with a cylinder diameter adjustable from 40 to 200mm, a maximum swing Angle of 720°, and an output torque of 118.7kN·m. Through the dual-blade structure design, when one blade is driven by hydraulic oil, the other blade returns to its original position by a spring, achieving precise control of the robot’s gait. This system is equipped with a built-in hydraulic power pack, integrating the motor, pump and control valve into one unit, enhancing the compactness of the system.
Viii. Press Oil Replenishment System: Energy-saving design with flow Matching

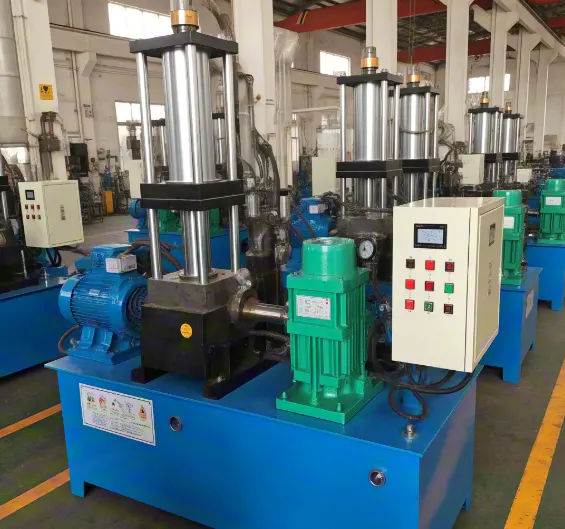

In a closed pump-controlled hydraulic press, the single-acting hydraulic cylinder achieves flow matching through oil replenishment by a variable pump. To address the issue of flow mismatch in single-rod hydraulic cylinders, a combined oil replenishment system of a fixed displacement pump and a variable displacement pump is adopted. The flow in the two chambers is balanced by controlling the displacement of the variable displacement pump. Simulation shows that the energy utilization rate of this system has increased by 23%, and the speed fluctuation is less than 5% when the load changes, effectively solving the problem of high energy loss in traditional oil replenishment methods.
Ix. Climbing Beam Positioning System: Mechanical locking for safety Assurance
In the tower crane climbing system, the single-acting hydraulic cylinder precisely positions the climbing crossbeam through mechanical locking. This system adopts a new type of climbing mechanism to prevent the crossbeam from rotating and swinging during operation, ensuring that the automatic positioning accuracy of the climbing claws reaches ±1mm. By establishing the expression of the influence of the climbing claw support system on the spare travel during climbing, reliable positioning at each step of climbing is achieved, enhancing the overall safety of the tower crane.
X. Application of Thin Hydraulic Cylinders: Solutions for Confined Spaces

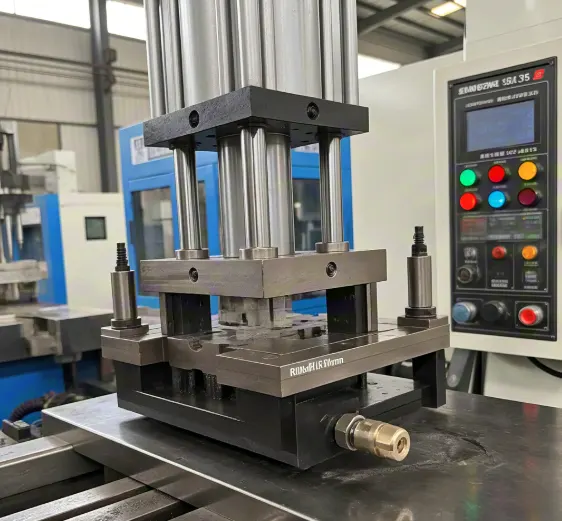

In the mold ejection mechanism, the RSM/RCS series single-acting thin hydraulic cylinders achieve compact installation through spring return. The cylinder block of this series is only 35mm thick and features a baked paint surface treatment to enhance corrosion resistance. All models are equipped with quick couplings and dust caps. When the hydraulic oil enters the rodless cavity, the piston rod is pushed out to push the workpiece out. After depressurization, it returns to its original position by the spring. This is particularly suitable for equipment with limited space such as injection molding machines.
Prospects for Technological Development
With the advancement of Industry 4.0, single-acting hydraulic cylinders are developing towards intelligence and integration. By adopting Matlab/Simulink physical modeling technology, the dynamic characteristics of electro-hydraulic position servo systems can be precisely analyzed. By optimizing the hinge point position through genetic algorithms, the force on the leg structure of bionic robots can be reduced by up to 30%. The flow matching technology of the closed pump control system has brought the energy efficiency improvement of single-acting hydraulic cylinders into a new stage. These technological breakthroughs will continue to expand the application boundaries of single-acting hydraulic cylinders in the high-end equipment manufacturing field.
